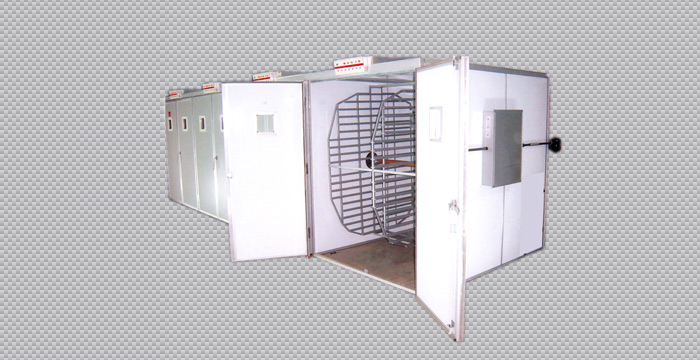

Setter Outside Series
Salient Features

  • Low Power Consumption
  • Accurate
  • Easy to Maintain
  • Suitable for every water
  • For more % Hatchability
  • More Durable
  • Maintenance Free
  • Easy to Operate
egg incubators manufacturers in india
Electrical
220-250 vac
Fan Motor-1/3 HP (0.25 KW)
Turning Motor-1/2 HP (0.37 KW)

4 Heaters, each of 500 Watts (per compartment) Electrical requirement for a machine (For One Compartment) is approx. 2.5 KW for A Setter. When the Incubator (Setter or Hatcher has once acquired its working temperature, the electric requirement will be 1-2 KW per compartment / machine

Thermometer And Hygrometers
Calibrated Thermometers of Highest Accuracy, installed behind glass window, for Reading Temperature and Humidity in the cabinet, which can be read easily without opening the doors.







Automatic Turning System

Robust and Compact Reduction Gear Box driven by 1/2 HP Motor. The Electric Timer operates the Turning System Automatically Every Hour. The System is also povided with Stroke Counter which is fitted for Turning Counting.





Cabinet
The Cabinet walls are made by Laminaed Panel, all Panels are Water Proof, Thermocol insulation with in, sturdy racks of thick iron painted with synthetic & with rust proofed bolts and nuts. Machine can be dismantled to facilitate their passages through a normal size door.





Humidistat

Contact Thermometers Operate Automatically to control the Solenoid Valve for regulating water or humidifier and to cool system. For Life Long, a STAINLESS STEEL Humidity Guard is also fitted.

Setting Trays
Specially Designed Plastic Trays Are Provided For Easy Egg Setting and Extra Hatchability.




Cooling System

Automatic Cooling System is provided with the machine which automatically cools it through a small Exhaust Fan duly controlled by thermostat.



Controls

Control Panel is provided on front for quick accessability and to operate machine easily.
